MEMBRANE BIO-REACTOR

The MBR process is a suspended growth activated sludge system that utilises ultrafiltration membranes for solid/liquid separation in lieu of secondary clarifiers.


The typical arrangement ncludes submerged membranes in the aerated portion of the bioreactor, an anoxic zone and internal mixed liquor.

ADVANTAGES OF MBR

  • Enhanced quality of treated water
  • Constant quality of treated water
  • Active biomass retention
  • Higher efficiency due to increasing concentration of biomass in the activated sludge tank
  • Optimizing and increasing capacity for conventional plants
  • Saving of final sedimentation
  • Smaller footprint

MODULAR DESIGN

Advantages of the new Cassette System:

  • Enhanced quality of treated water
  • Constant quality of treated water
  • Active biomass retention
  • Higher efficiency due to increasing concentration of biomass in the activated sludge tank
  • Optimizing and increasing capacity for conventional plants
  • Saving of final sedimentation
  • Smaller footprint

DESIGN EXAMPLE

  • 13568953_1269010729790727_4654219857596753501_o

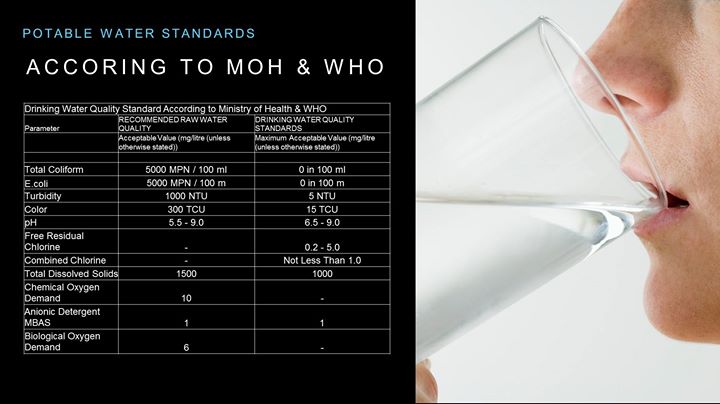

  • 13576827_1269010739790726_5047606164003830596_o

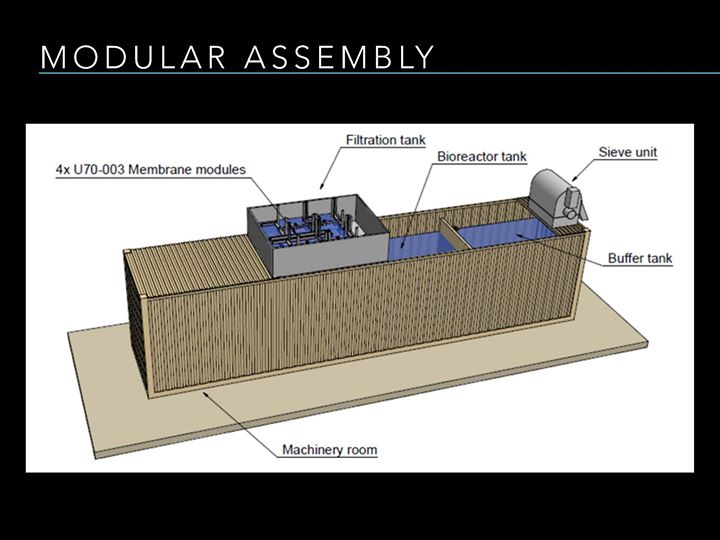

  • 10256619_1096281880396947_8101572179500875066_o

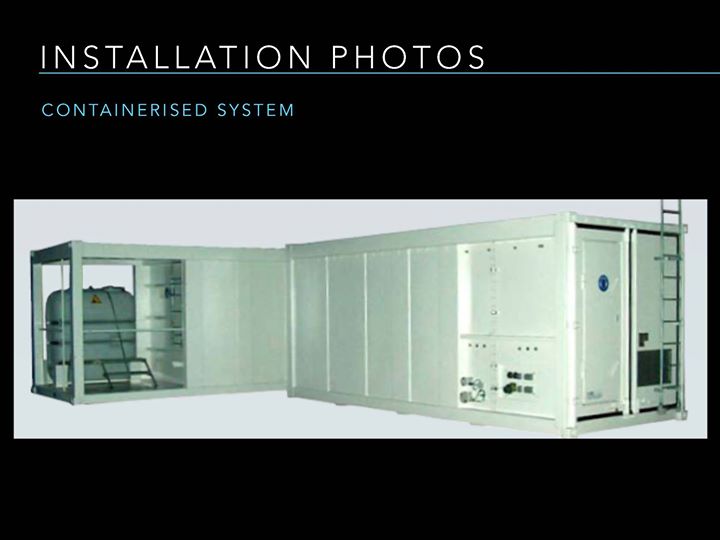

  • 12139938_1096281923730276_2311903361649363598_o
  • 11035734_1096281887063613_111659399768879929_o
  • 12182882_1096281780396957_8691637358954422651_o

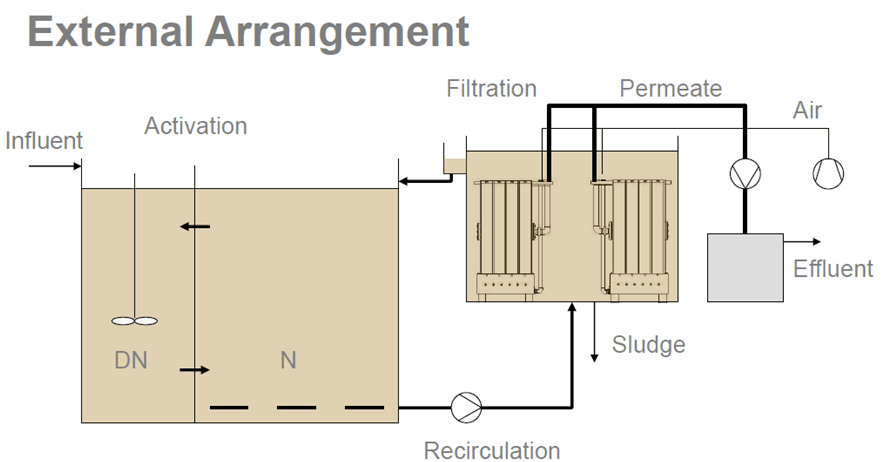

  • external

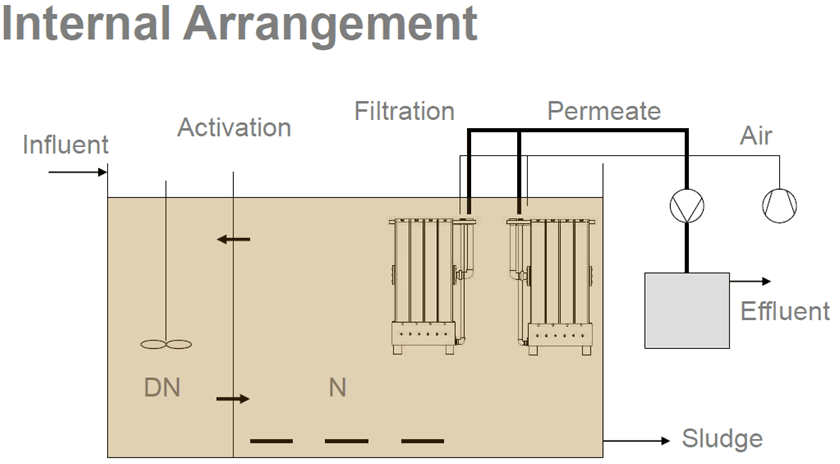

  • internal
